1025 - Series

Our Static Discharge Reels are equipped with a 2.0 Ohm resistant, 100.0 A ground clamp, Aero-Motive® Static Discharge Reels safely dissipate static electrical build-up and reduce the danger of sparking in hazardous areas such petrochemical plants, shipyards, etc. 1025 Static Discharge Reel while providing an overall resistance of Less than 2 Ohms, is compact in size and built sturdy to fit in most standard industrial duty applications.

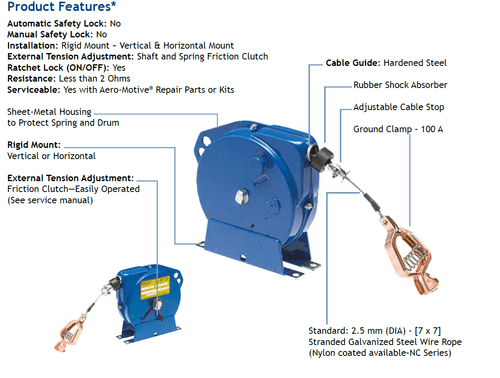

Product Features

Ordering information

Model

Reference No.

Weight Range (lb)

Weight Range (kg)

Travel (m)

Travel (ft)

Active Cable Travel

Serviceable

1025

1301770015

7.5

7.5 m (25‘)

Yes

1025NC

1301770002

7.5

7.5 m (25‘)

Yes

For stock information please go to our chosen logistics partner Bürklin Elektronik.

Unit Dimension Specification

Dimensions are shown in inches (and millimeters) and are for reference only.

Unit Dimension Packaging Specification

Model

Height

Width

Depth

Weight

inches

1025

140

203

262

2.5

6.0

1025NC

140

203

262

2.5

6.0

Please note: Specifications for reference only [±10 %]. Subject to change without notice.

In need of Repair Kits or Customized Solutions?

Our products have been designed with longevity in mind. If you need a specific repair part, you can contact us at any time. We will help you to get back up and running as quickly as possible.

If you want to customize your Aero-Motive® products, e.g. choose a different housing color or labeling, contact us and we will discuss your request with you.
